FLEXUS

OPTIMAL POSTURE ALL TIME

FLEXIBILITY AND STRENGTH AS TIME GOES BY

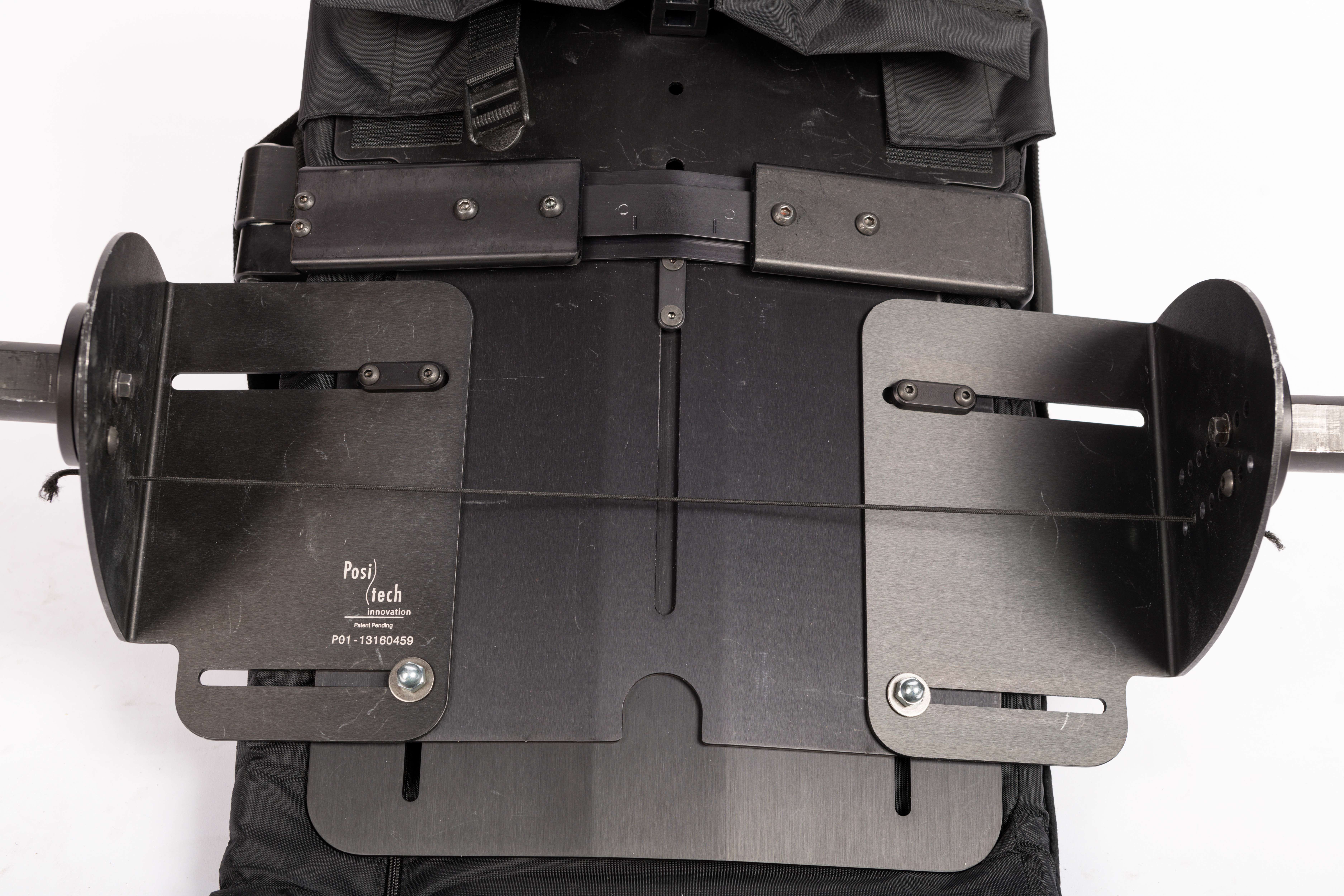

FLEXUS is a unique rigid aluminum frame backrest, available in two universal sizes : adult and child. Its ingenious design allows you to customize the height, width and depth configurations as well as adjust the tilt angle at any time.

The goal is to provide an optimal posture according to the evolution of the physical condition of the wheelchair user.

The comfort, safety and autonomy of the user are assured, as FLEXUS allows the therapist to adjust his or her clinical approach at any time for an optimal result.

All our products can be added to the FLEXUS to make it a very scalable system. .

Odoo • Text and Image
  • One size for all dimensions.
  • Multiple adjustments for height, width, angle and depth.
  • Allows multiple postural configurations.
  • Corrects moderate to severe trunk bending (lateral/frontal).
  • Optimises the distribution of the back's pressure zones.
  • Rigid aluminum structure covered with a comfortable and removable upholstered backrest cushion .
  • Adaptable onto all types of tubular frame wheelchairs.

  • Fully compatible with AXILUS , SUMMUS , STARUS , FORMUS  and STOPUS.

Adult

  • Fits on all of tubular wheelchair of a width from 14 to 20 inches (35 to 51 cm).

  • Can produce a backrest height form 18 to 26'' (45 to 66 cm), with a reclined angle of 15   °   to + 15   °   (increments of 5   °    ) and a position of (-) 1.5'' to (+) 2'' (-3.8 to 5 cm) of the canes.

  • The user's weight can be from 75 to 275 lbs (34 to 245 kg).

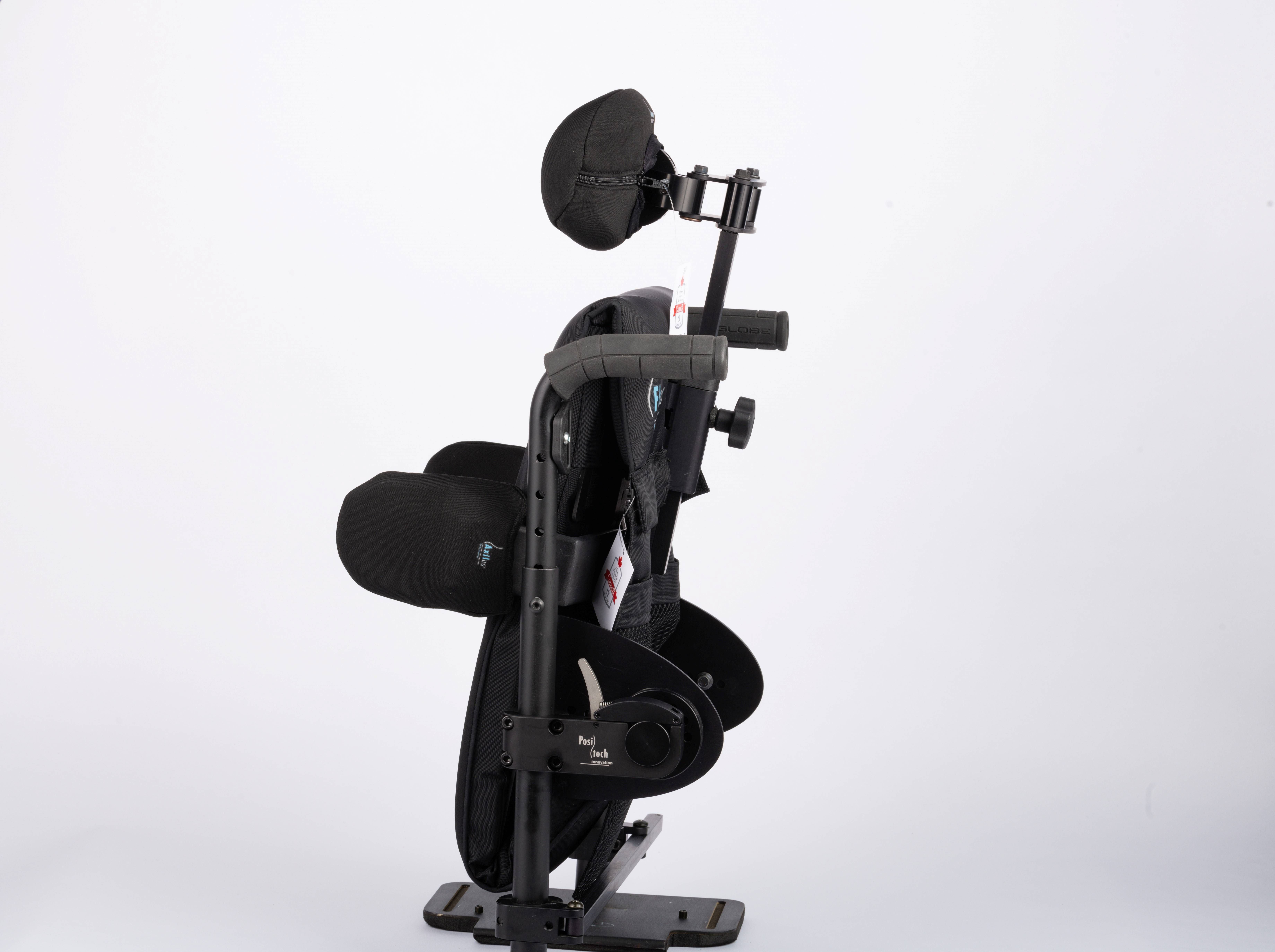

Child

  • Fits on all types of tubular wheelchair of a width from 11 to 14 inches (28 to 35 cm).

  • Can produce a backrest height from 15 to 18'' (38 to 46 cm), with a reclined angle of 15  °  to 15   °       (increments of 5   °    ) and a position of (-) 2'' to (+) 1'' (-5 to 2.5 cm) of the canes.

  • The users's wight can be from 35 to 150 lbs (16 to 68 kg).

Order form
  Download me

FLEXUS adult/child :  SE0001440
FLEXUS Anti-Movements Strap :  SEBND0010
FLEXUS Adapter Kit 1 1/8'' :  SEBND0010

ADP CODE INFORMATION



  specific FEATURE

services

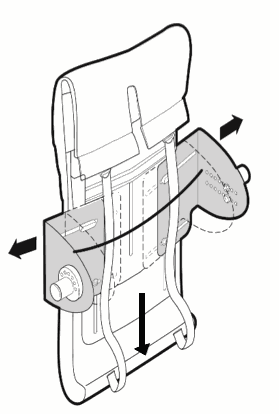

Adjustable width



Adult Child
W
Width 		14''-20''
355-510 mm 		11'' -14''
279-356mm
WS
Width 		9.5''- 15.5''
241-395mm 		6.5''-11''
165-279mm












services

Adjustable height




 Adult Child
H
Height 		18''-26''
457-660mm 		15''- 18''
381-457mm













services

Adjustable Axil distance



Adult Child
Hs
Heights 		(-) 4.5'' (+)4.5'' -
(-)114mm (+)114mm  		(-) 4.5'' (+)4.5'' -
(-)114mm (+)114mm
